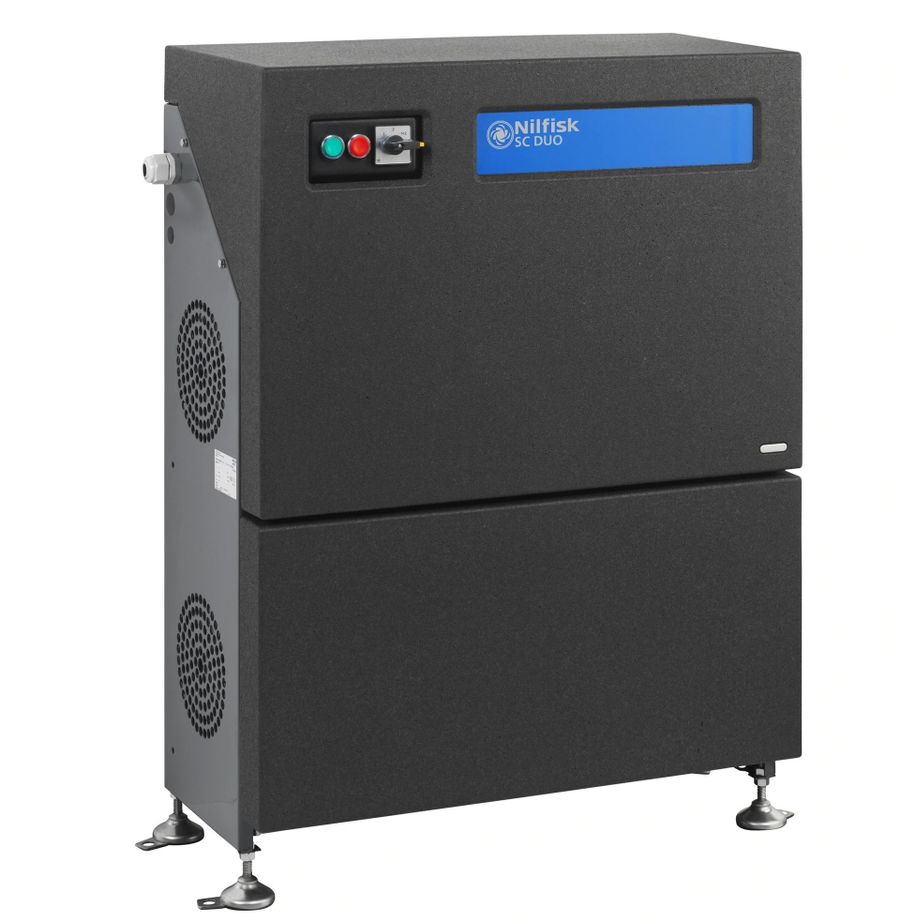

Nilfisk Sc Duo 6p-170/3220 400/3/50 EU Water Pressure Washers
SC DUO 6P-170/3220 400/3/50 EU WATER PRESSURE WASHERS
SC DUO 6P-170/3220 400/3/50 EU WATER PRESSURE WASHERS
Stationary 2-pump high pressure washers for heavy cleaning tasks

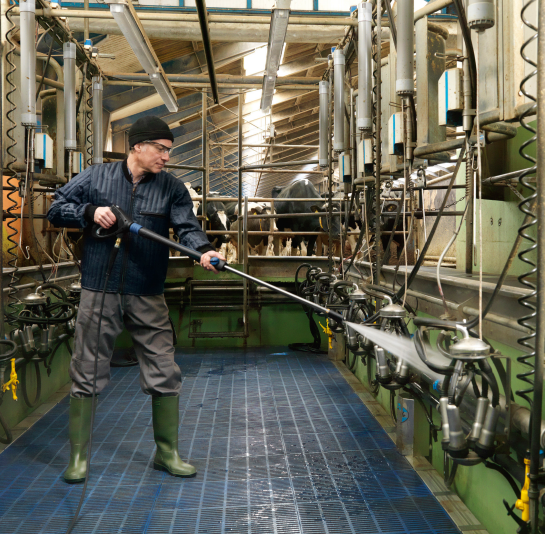

Designed for large cleaning tasks SC DUO 6P, 7P & 8P are ideal for agriculture with milking sheds, sties, and stables.

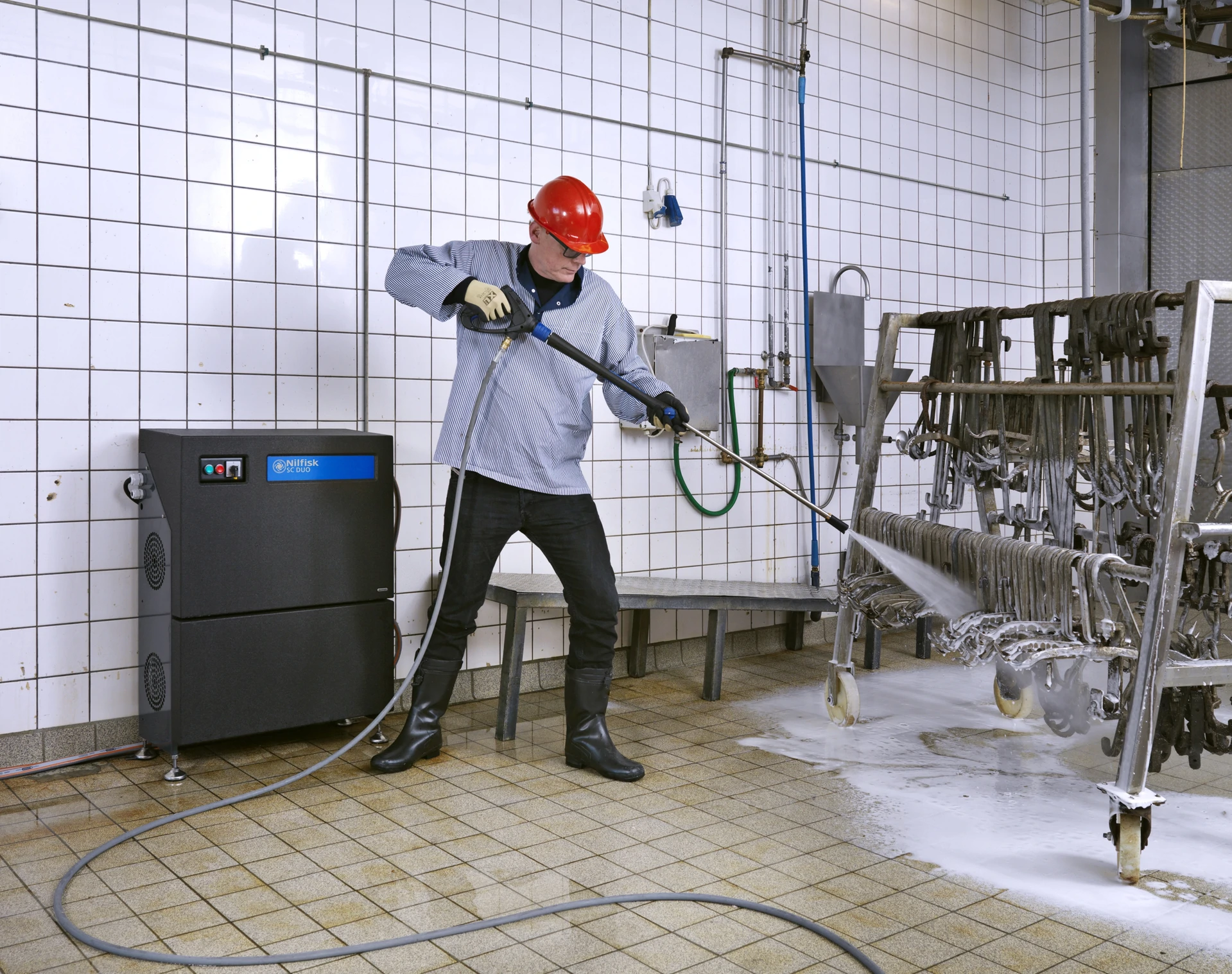

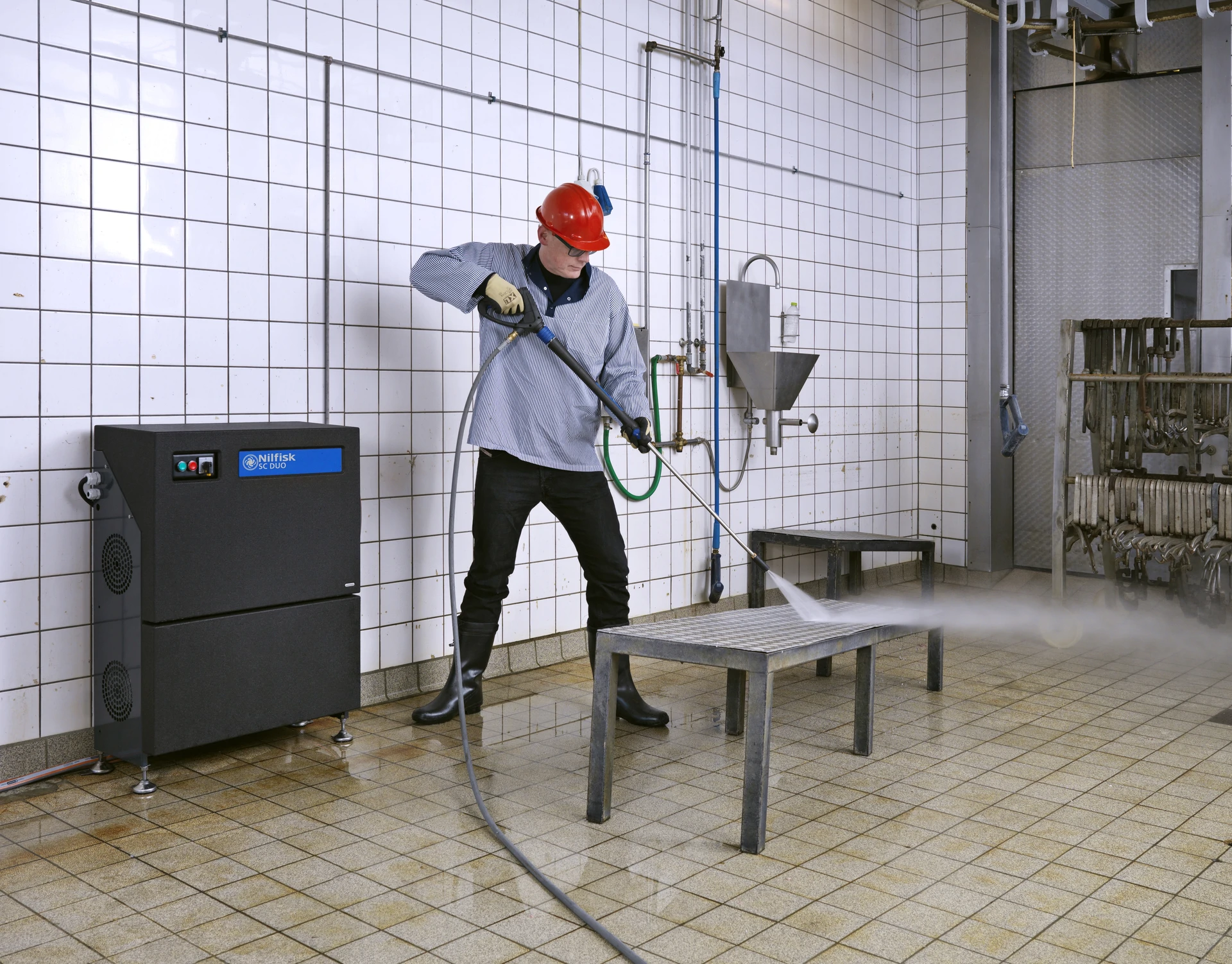

Food and pharma industry with processing equipment, conveyors, and tanks. Shipping and industry with ship decks, bulkheads, and industrial equipment. Even oil and grease can be removed easily thanks to the hot water inlet.. Offers you the flexibility of being either one user – or two working together.
INFORMATION
BRAND
Nilfisk
PRODUCT TYPE
Water Pressure Machine
PRODUCT NUMBER
107340600
PUMP PRESSURE
170/17 (bar/MPa)
PUMP (RPM)
1450
WEIGHT
180 kg
DIMENSIONS
- Length : 355 cm
- Width : 860 cm
- Height : 1000 cm
MAXIMISED CLEANING EFFICIENCY
The SC DUO series significantly improve the performance levels of 2-pump cold water high pressure washers. Thanks to higher working pressure and increased water flow, even large heavy-duty cleaning jobs can be handled with ease. Offers you the flexibility of being either one user – or two working together. Cleaning efficiency is maximized by a 4-piston long-life motor pump accepting both cold and hot water up to 85°C.
WATER FLOW
Up to 2x2500 l/h
WORKING PRESSURE
up to 180 bar
MAX. INLET TEMPERATURE
80 (°C)
CLEANING IMPACT
15.8 kg/force
POWER CONSUMPTION
18 KW
VOLTAGE
400 V
PHASE
3 ~
SOUND LEVEL LPA/LWA
93 (dB(A))
WATER FLOW QMAX/QIEC
3220/3000 (l/h)

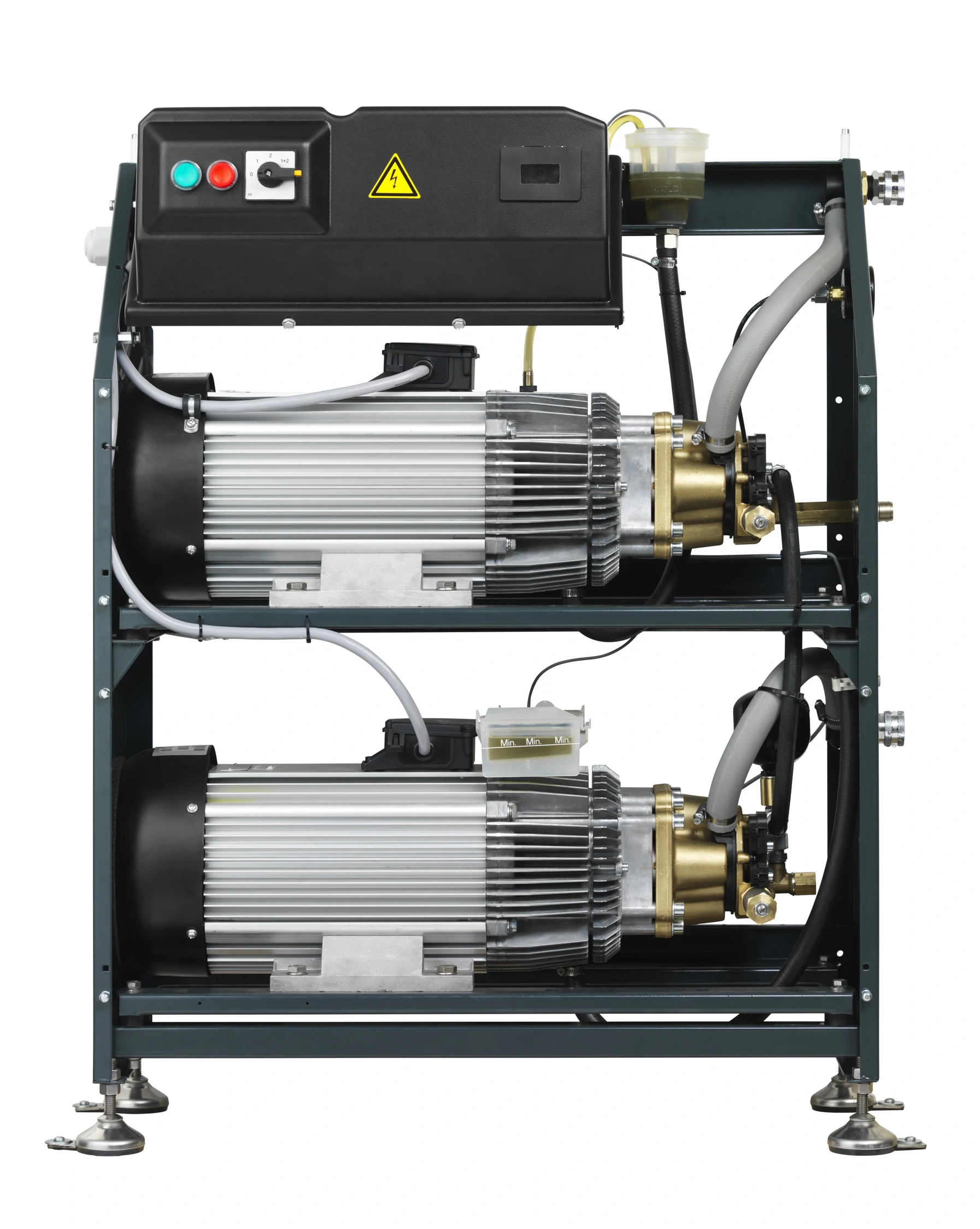

HIGH-QUALITY MOTOR PUMP
NA6, C3 and new NA6+ high-quality motor pumps with brass pump heads
FREQUENCY
50 Hz
FRAME
Built on powder-coated steel frame
ROLLER BEARINGS
1450 rpm; 4 full ceramic pistons and double roller bearings
NOZZLE SIZE
.0900
CERAMIC PISTONS
4
HOT WATER INLET
70°- 85°C hot water inlet for max. cleaning efficiency
CUSTOMIZED FOR YOUR CLEANING NEEDS
- Optional add-ons to fulfill EU norm 1717: Water Break Tank or BA valve
- Choose a basic or more feature packed model to achieve low Total Cost of Ownership.
- Extra optional features include, stainless steel frame and cabinet, high pressure detergent injector, remote control, low water inlet security, accessory storage kit and low water security.
CURRENT
31 A
INNOVATIVE

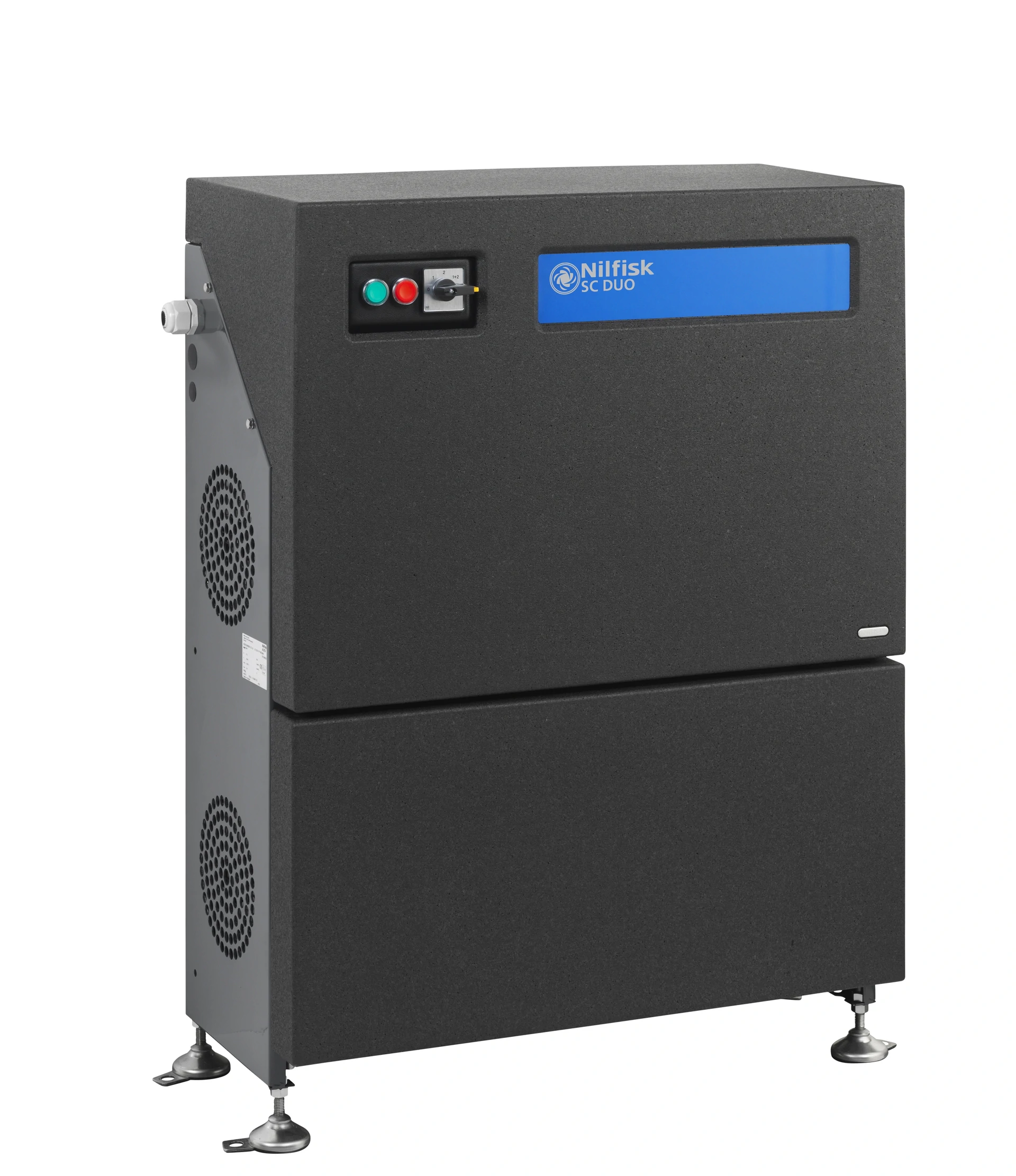

Innovative hard foam cabinet
BUILT FOR USE
Built for use in excess of 6 hours per day, each model can be customized to meet your exact cleaning needs.
HOT WATER
Cleaning efficiency is maximized by a 4-piston long-life motor pump accepting both cold and hot water up to 85°C.
DOWNLOADS
↓ Data Sheet
↓ Operators Manual 1
↓ Operators Manual 2
↓ Operators Manual 3
↓ SC DUO 6P, 7P & 8P
WATER INLET COUPLING
1602945
CABINET REDUCES
Foam cabinet reduces the noise level
NUMBER OF PUMPS
2
ERGO COUPLING
101119496
PISTONS / NUMBER OF PISTONS
Ceramic / 4
RECOMMENDED AVG. HOURS OF USE PER DAY
5
DETAIL
Designed for large cleaning tasks SC DUO series is ideal for agriculture with milking sheds, sties, and stables. Food and pharma industry with processing equipment, conveyors, and tanks. Shipping and industry with ship decks, bulkheads, and industrial equipment. Even oil and grease can be removed thanks to the hot water inlet and mountable options as 2 x high pressure detergent.
