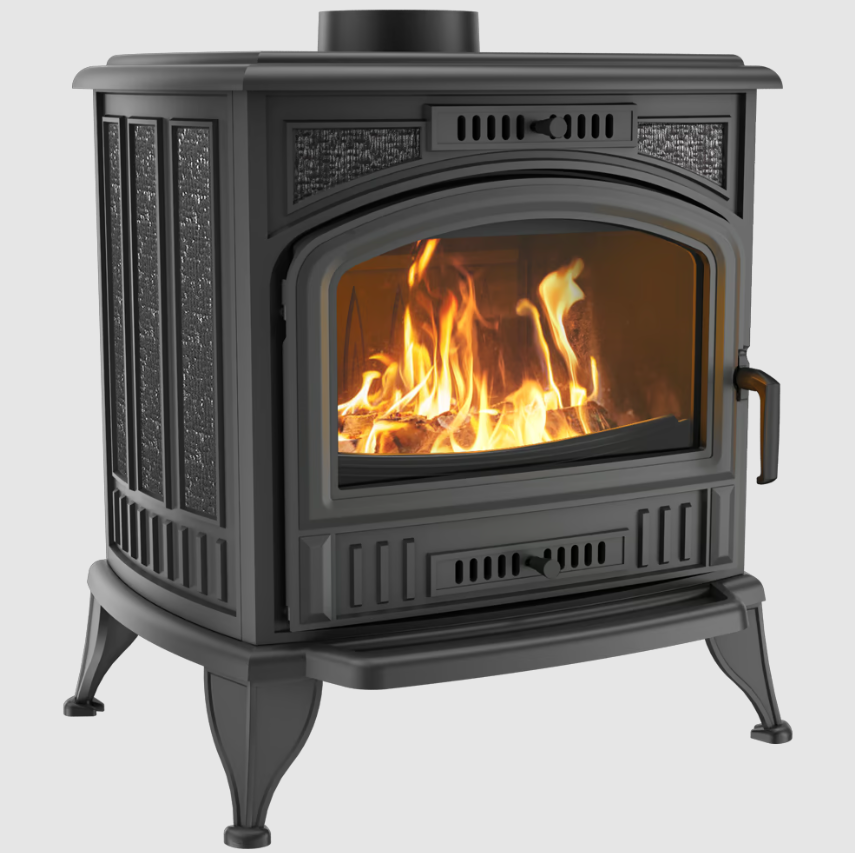

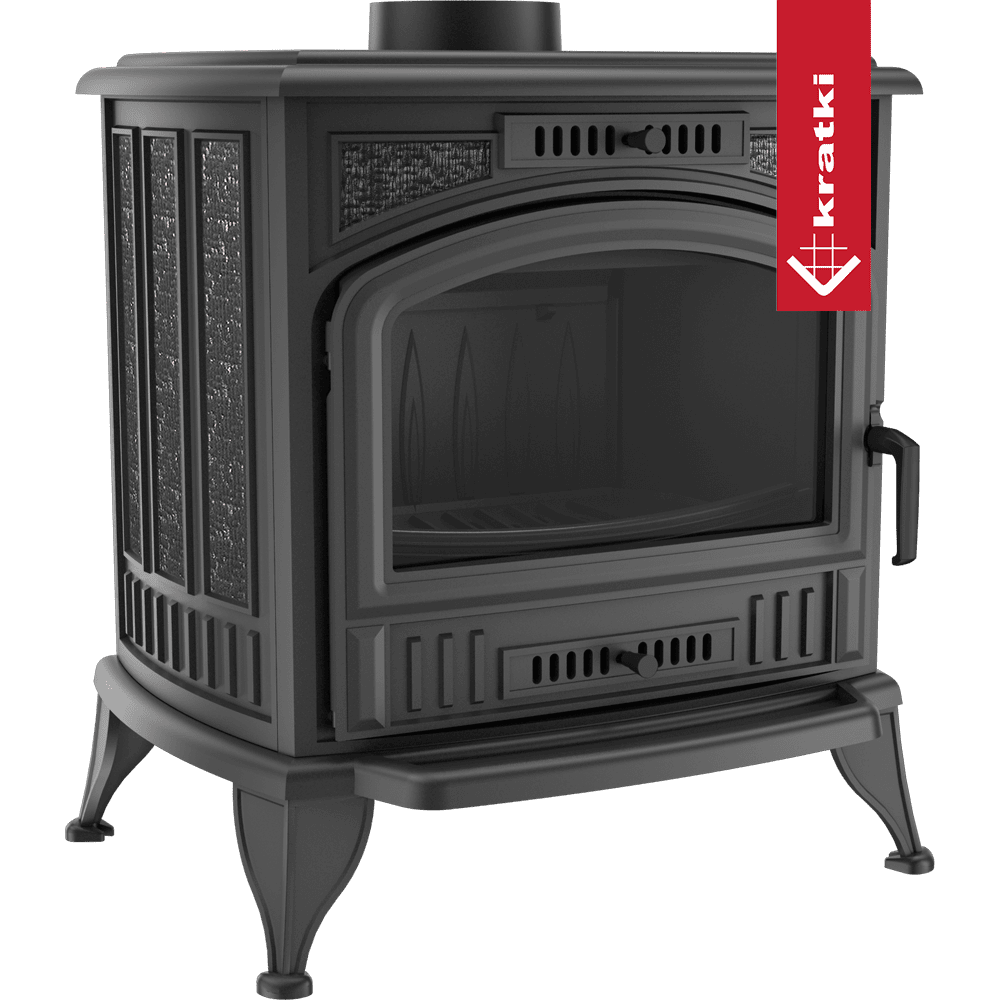

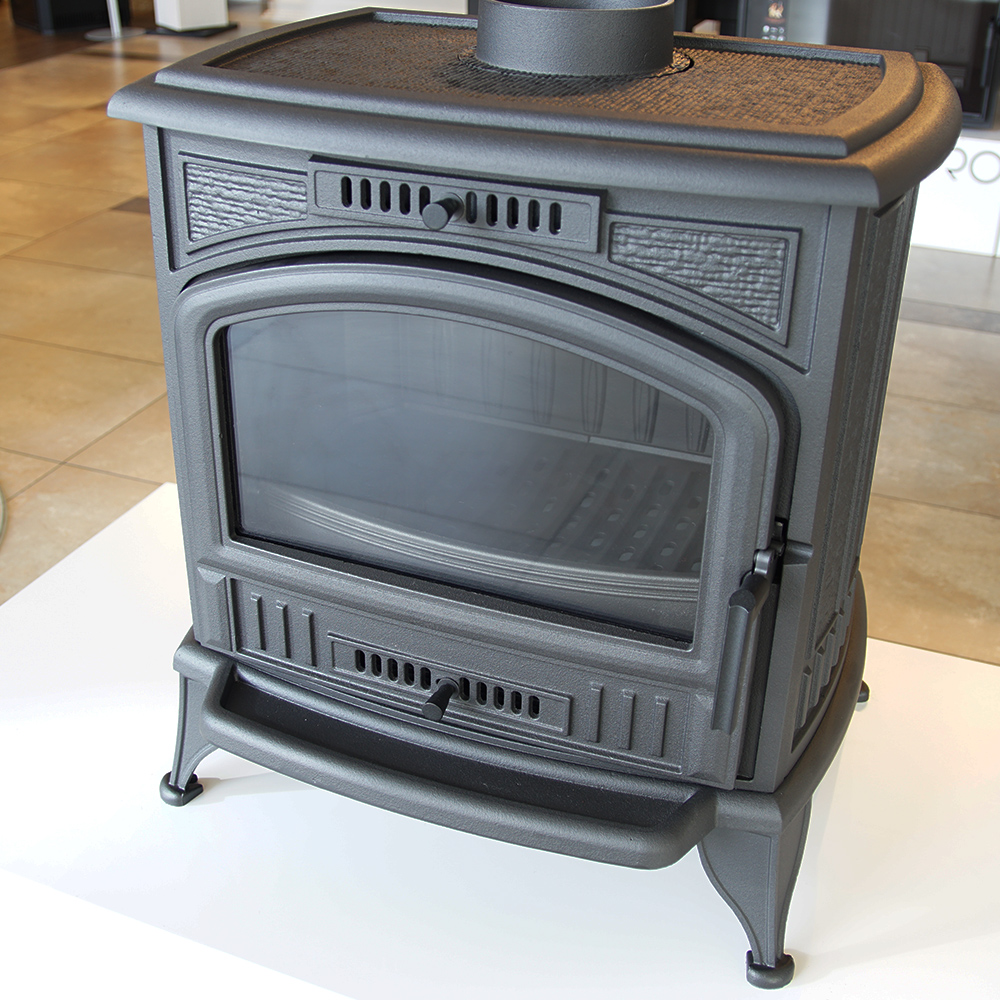

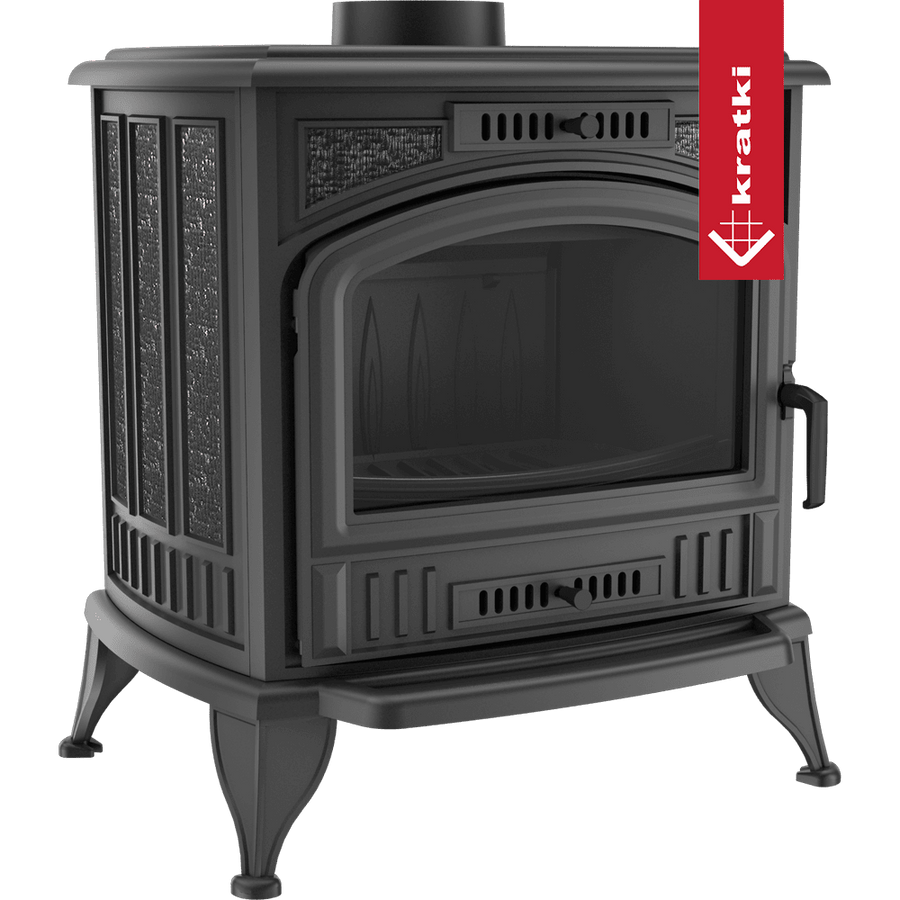

Kratki Wood Burning Cast Iron Stove Kratki K6 Ø 150 8 Kw
WOOD BURNING CAST IRON STOVE KRATKI K6 Ø 150 8 KW
WOOD BURNING CAST IRON STOVE KRATKI K6 Ø 150 8 KW
INFORMATION
NUMBER OF PIECES IN A PACKAGE.
2
BRAND
Kratki
PRODUCT TYPE
Stove
SKU
KOZA/K6/150
EAN
5901350053959
FRONT
Cast iron front with ceramic glass
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
EQUIPMENT
Ashpan
FLUE GAS TEMPERATURE
320 °C
POWER
- Nominal power : 8 kW
- Heating power range : .7.0 - 11.0 kW
THERMAL EFFICIENCY
70.4 %
CERTIFICATIONS / COMPLIANCE
Certificates : Ecodesign
PHYSICAL PARAMETERS
- Width : 57.8 cm
- Depth : 49 cm
- Height : 66.8 cm
OPTIMAL LOG LENGTH
320 mm
MAX BILLET LENGTH
35 mm
WEIGHT
118 kg
BASE MATERIAL
Cast iron
COLOR
Black

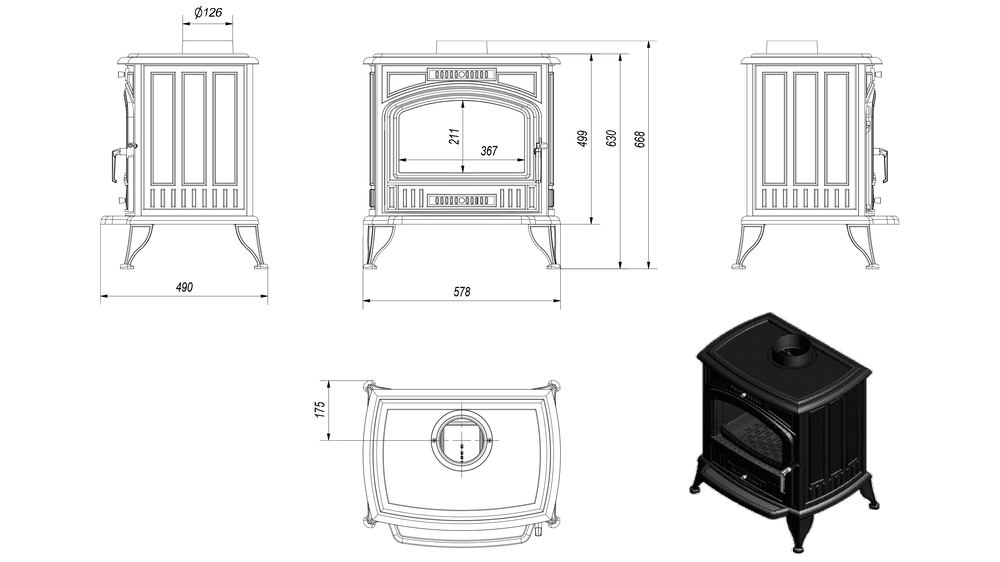

TECHNICAL DRAWING
DIAMETER OF THE FLUE GAS OUTLET
150
ADDITIONAL CLOSING
No
OPTIONAL EQUIPMENT
None
DOOR OPENING
Left
ENERGY CLASS
A
SAFETY AT THE HIGHEST LEVEL
- Decorative fence helps to maintain tidiness and protects against falling out of wood.
- The Classic front of the stove is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C.
EEI
92
SEASONAL ENERGY EFFICIENCY
60 %
MAXIMUM USE OF ENERGY
- Combustion of fuel particles thanks to the deflector, which extends the exhaust gas path.
- Maximum use of heat and trouble-free operation thanks to the walls of the device made of high-quality cast iron with a thickness of 8 mm.
HEAT OUTPUT FOR SPACE HEATING (KW)
8 Kw
CO EMISSION (MG/M3)
1338 mg/m3
NOX EMISSION (MG/M3)
110 mg/m3
POLLEN EMISSION (MG/M3)
22 mg/m3
OGC EMISSION (MG/M3)
57 mg/m3
FLUE GAS MASS FLOW (G/S)
10.7 g/s
WARRANTY
5-year warranty
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.107 %
CONVENIENT TO USE

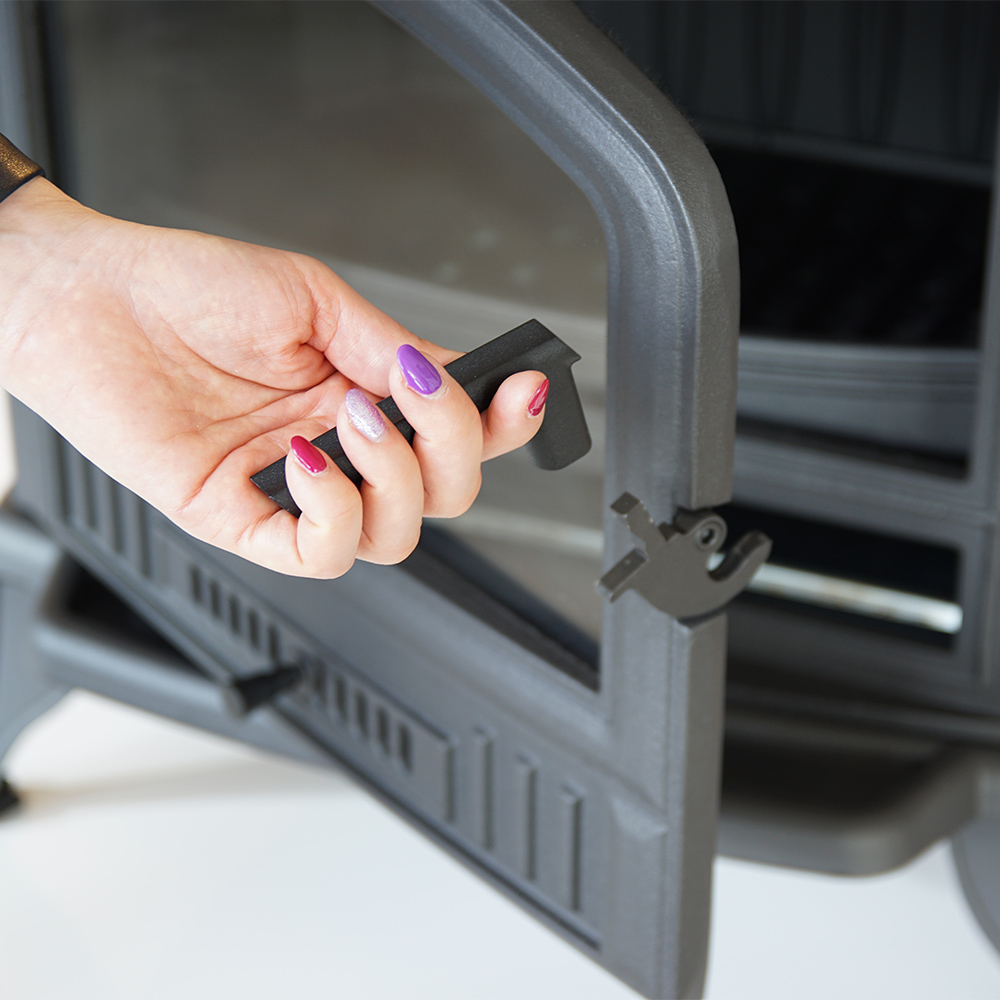

- The cold handle system allows for disassembly when the stove is in use.

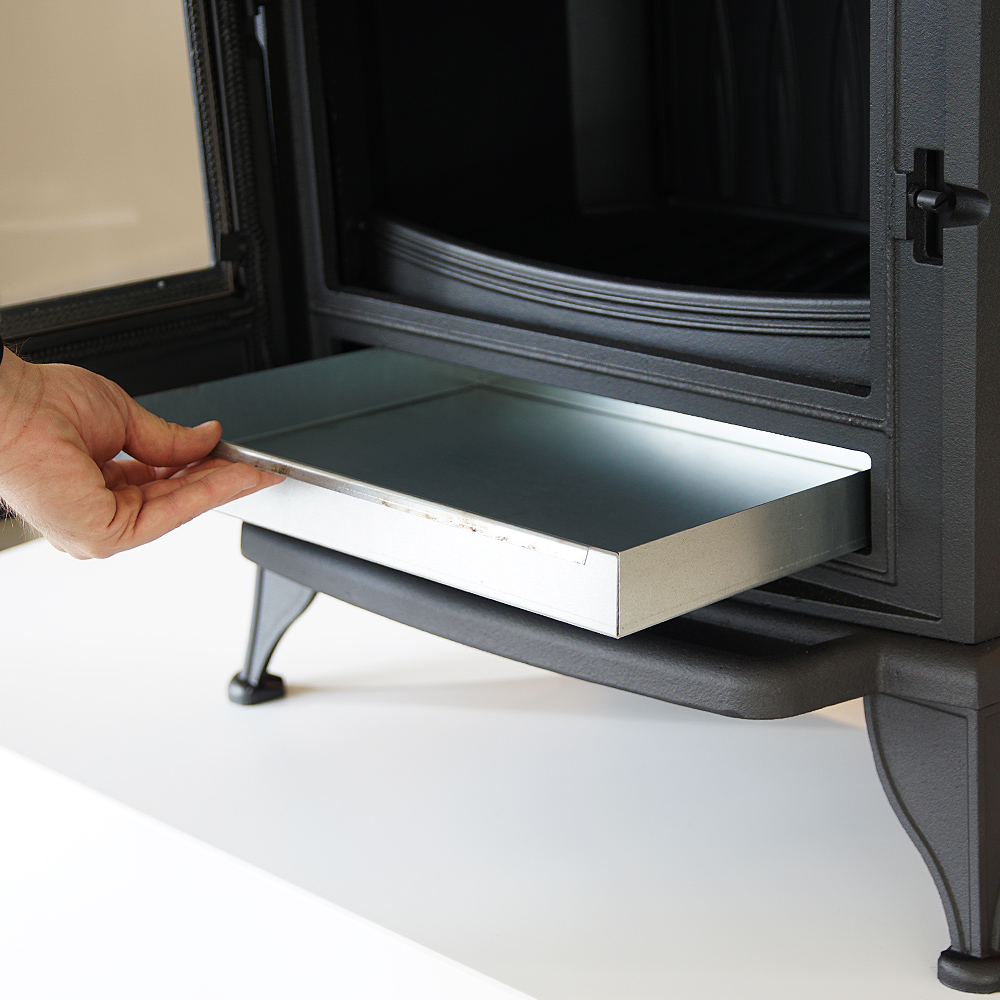

- Ash drawer/ashtray, where burnt wood remains are gathered and grated for easy ash removal.
- Reduced soot deposition through a system of pure glass (air curtain).
- The possibility of different assembly, thanks to the adjustable flue gas outlet from the back or top of the stove.
