IC/BRISA DC | 56″ ELECTRICAL FAN
IC/BRISA DC | 56″ ELECTRICAL FAN
Designed by Guto Indio da Costa
DESIGNER
GUTO INDIO DA COSTA
A Brazilian designer and the Director of Rio de Janeiro based Indio da Costa A.U.D.T., Guto Indio da Costa is the newest contributor to Modern Fan’s assortment.
His experience is extensive, dating back to the design of his award-winning Spirit fan released to the Brazilian market in 2001.
The IC/Air collection (2017) represented Indio da Costa’s first ceiling fan project aimed at the North American market and marked Modern Fan's adoption of new DC motor and LED technologies.
The collaboration continued with the introduction of the IC/Brisa (2023), another "clean, sleek, elegant" concept from Indio da Costa.
information
BRAND
The Modern Fan
PRODUCT TYPE
Fan
DESIGNER
Guto Indio da Costa
MATERIAL
Die cast aluminum and injection-molded ABS construction
WEIGHT
12.0 lbs (5.44 kgs)
ETL LISTED
ETL listed for dry and damp locations
FEATURES
56” span, injection-molded ABS blades (matte white, matte black or translucent)

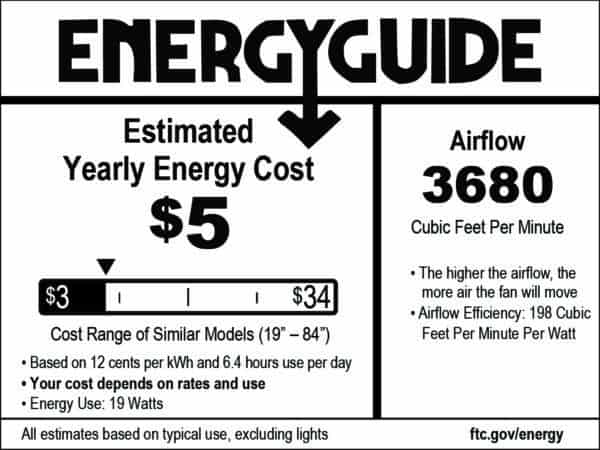

ENERGY GUIDE DATA
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).
- Average Energy Use : 19 Watts
- Average Airflow : 3,680 CFM
- Yearly Energy Cost : $5.00
- Average Efficiency : 198 CFM/Watt
COMPATIBLE
Slope compatible up to 20°; adapter available for slopes up to 45°
COLLECTION
IC/Brisa
LONGER OPTIONS
Includes 6” and 18” down rods; longer options also available
OPTIONAL LED LIGHT
17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant

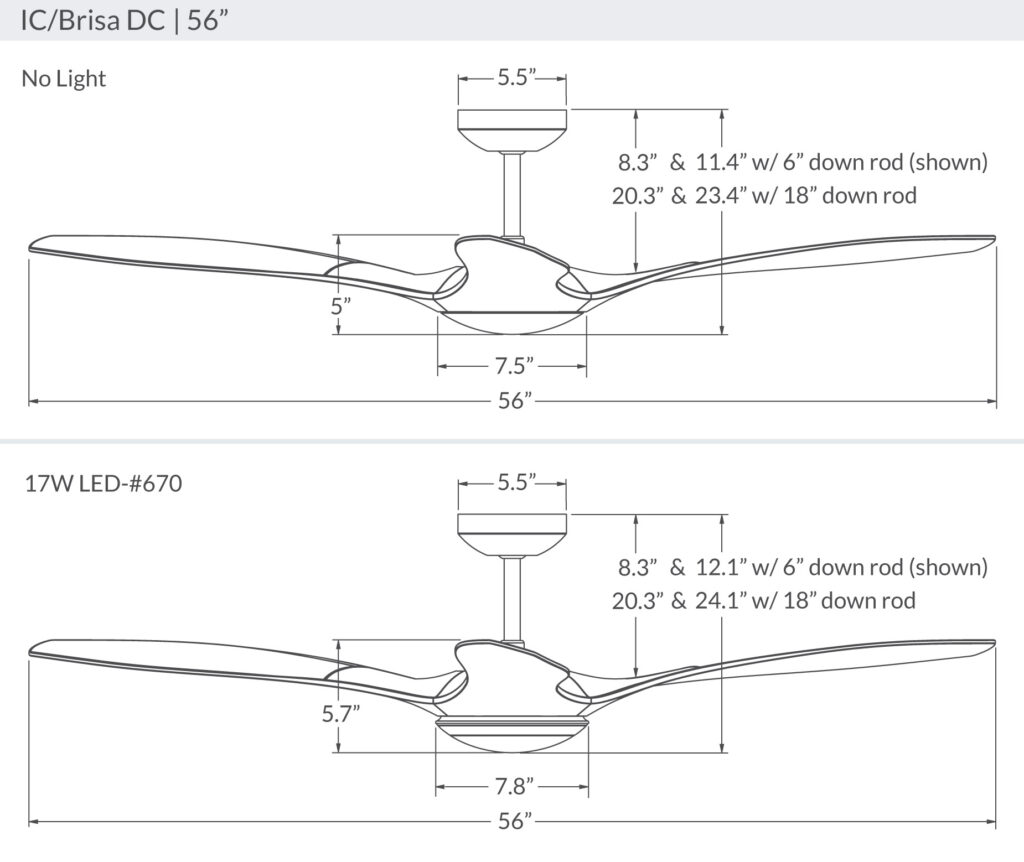

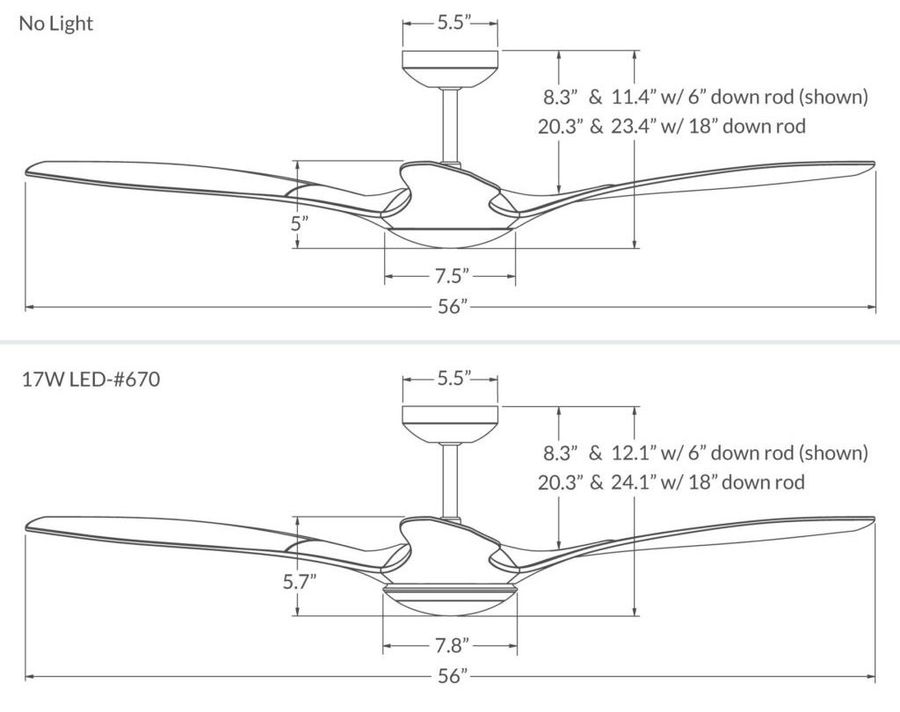

TECHNICAL DRAWING
HIGH SPEED PERFORMANCE DATA
Based on DOE standardized test method (installed with 6″ down rod).
- RPM : 185
- CFM/Watt : 187
- Watts (fan only) : 29.89
- CFM (Cubic Feet per Minute) : 5,584
CHOOSE LIGHT OPTION
- No Light
- 17W LED
AVALABLE COLOR
6
PRODUCTION
Made in United States
DOWNLOADS
↓ Data Sheet
↓ Installation Instructions
PERFORMANCE AND EFFICIENCY
MORE ABOUT PERFORMANCE AND EFFICIENCY
Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product.
These values are “weighted averages” of high and low speed performance and are intended to represent typical use. They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products.
Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format.
Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.
It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction.
It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.
Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.
CONTROL OPTIONS

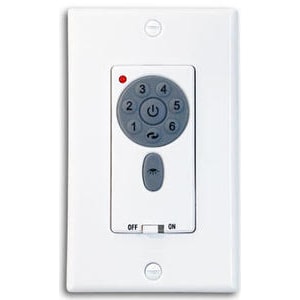

WALL CONTROL (WC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), battery and RF canopy receiver.

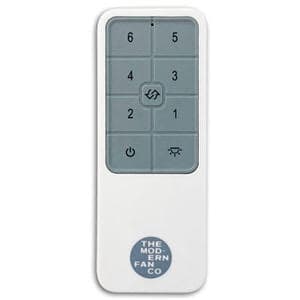

REMOTE CONTROL (RC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes handset, wall mount holder, battery and and RF canopy receiver. For use with on/off toggle switch providing power supply to fan.

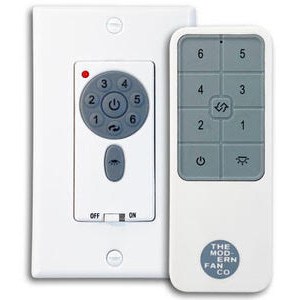

WALL/REMOTE COMBO (CC)
A combination control set for radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), handset, batteries and RF canopy receiver.
COLORS
COLORS

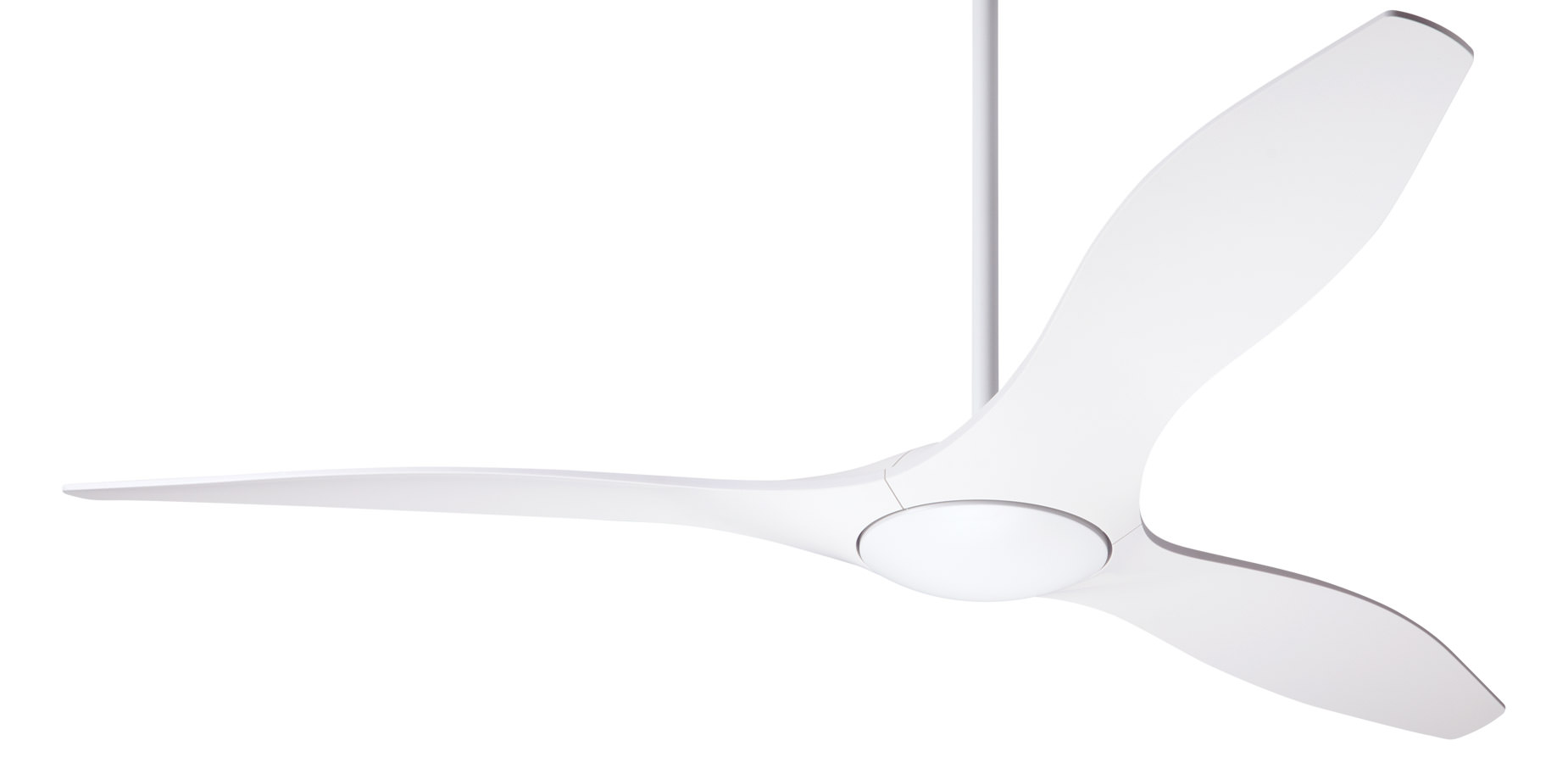

- Matte White

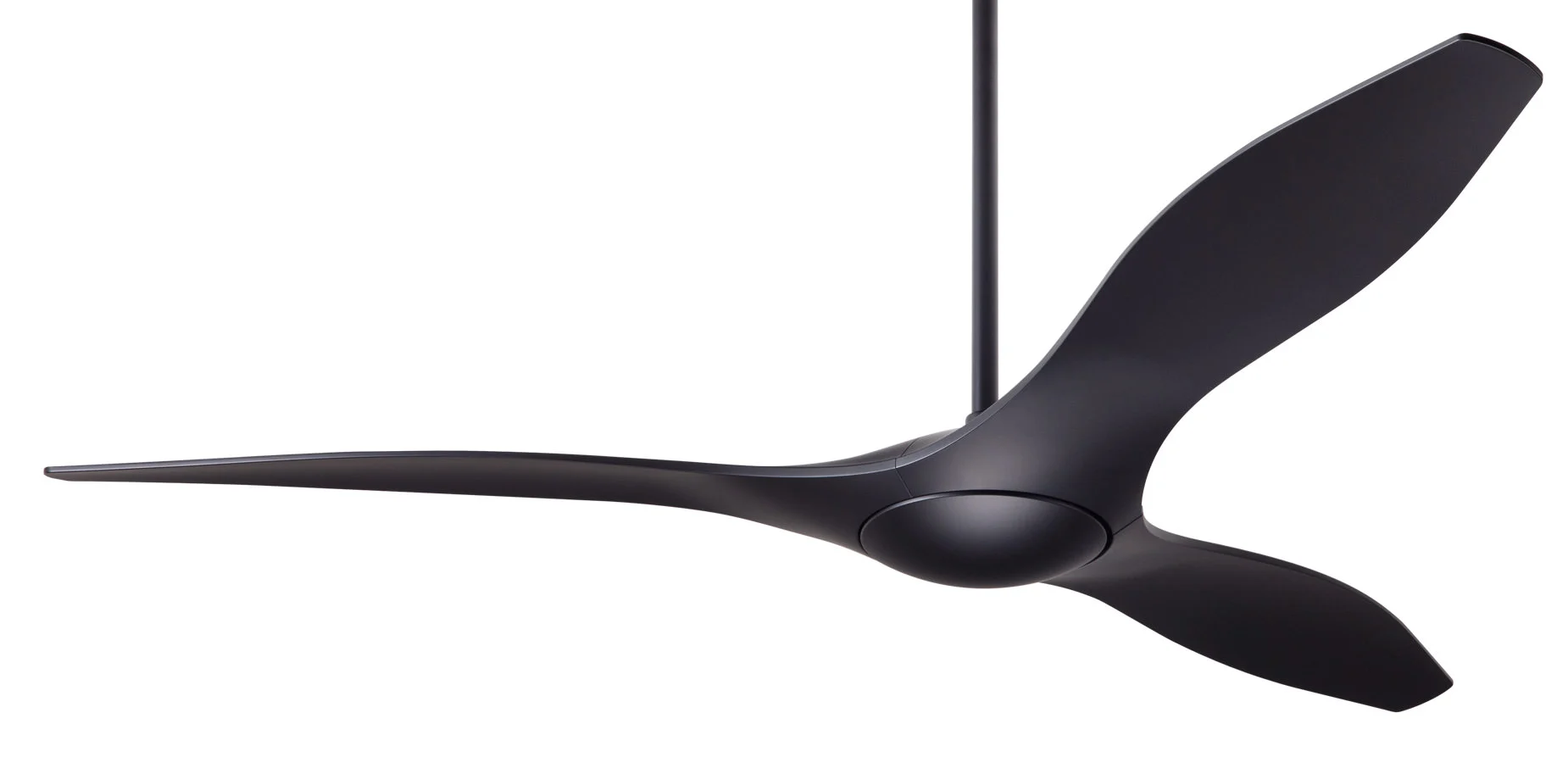

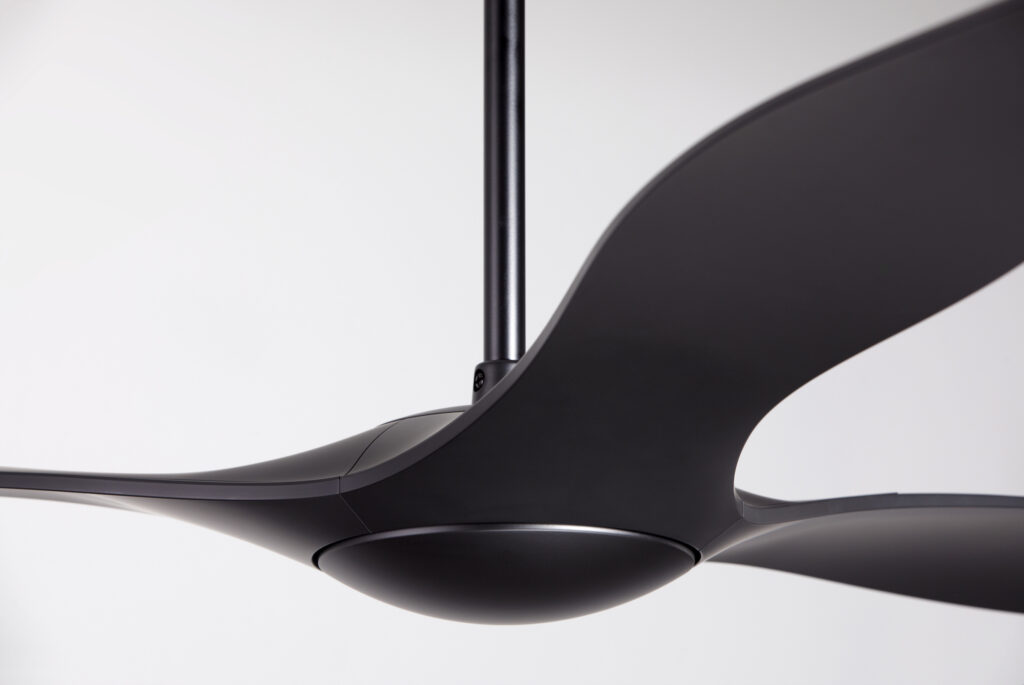

- Matte Black

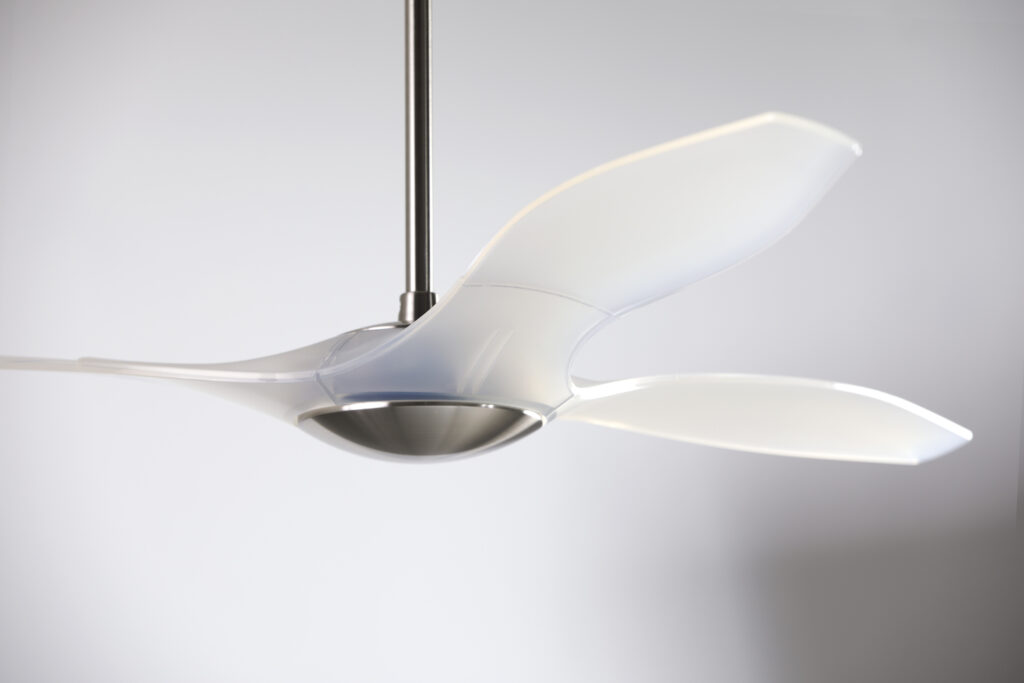

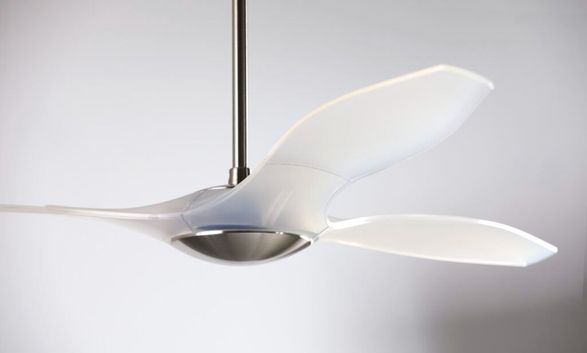

- Bright Nickel/Translucent

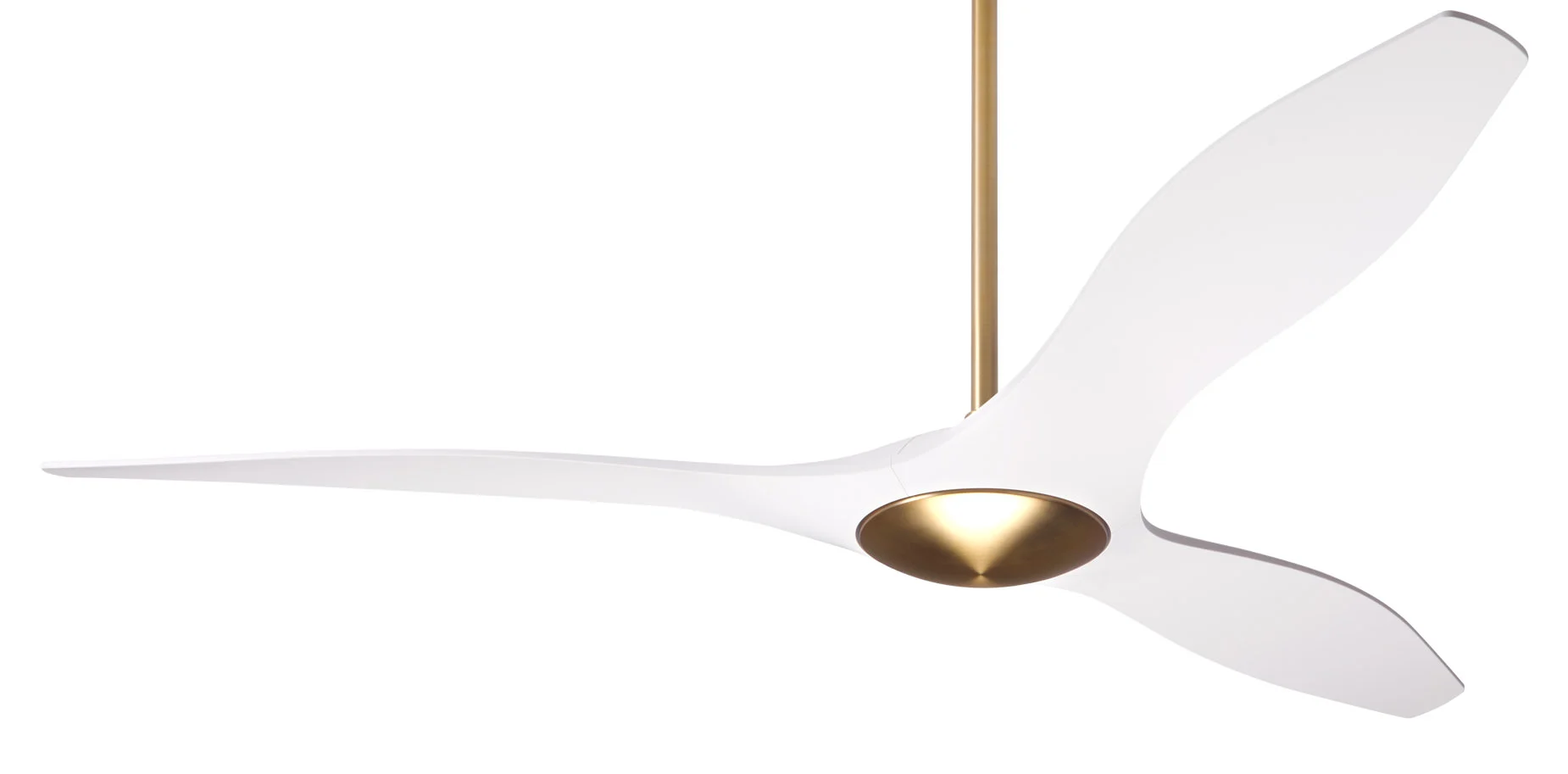

- Satin Brass/Matte White

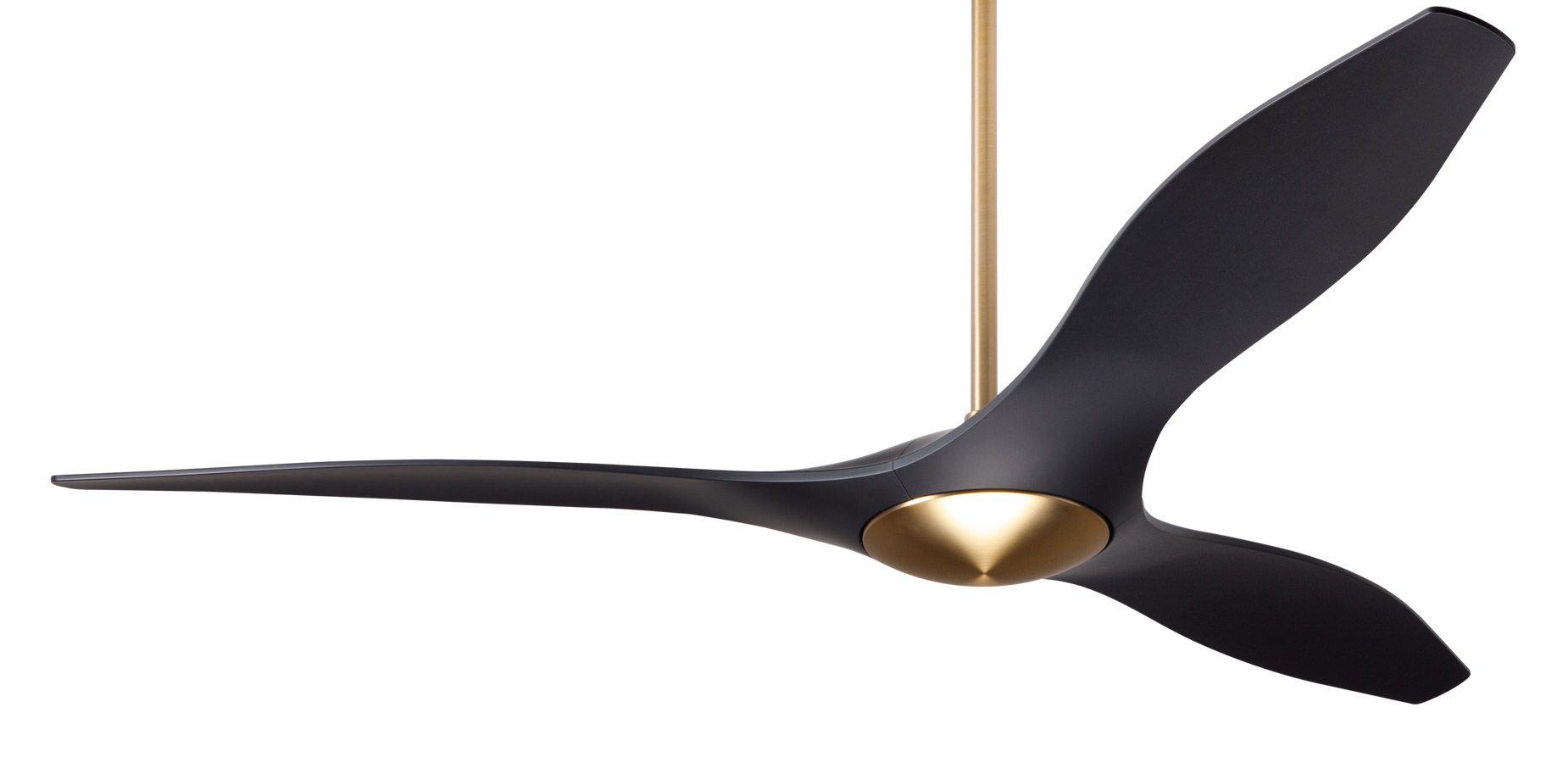

- Satin Brass/Matte Black
