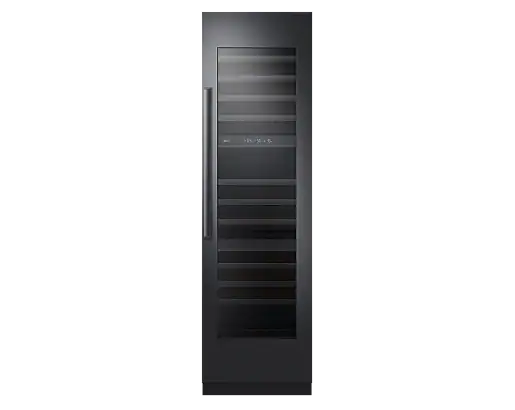

Dacor 24-inch Wine Column
24-INCH WINE COLUMN
24-INCH WINE COLUMN

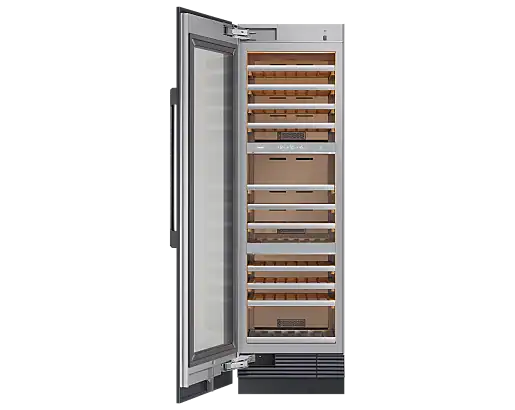

Dacor’s fully integrated, full sized wine column easily holds up to 100 bottles of wine in three independently cooled zones, perfectly stored behind a triple layer of glass filled with argon gas to protect your wine collection from UV and IR rays.

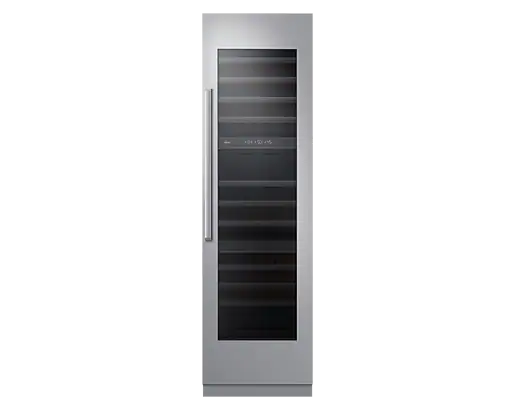

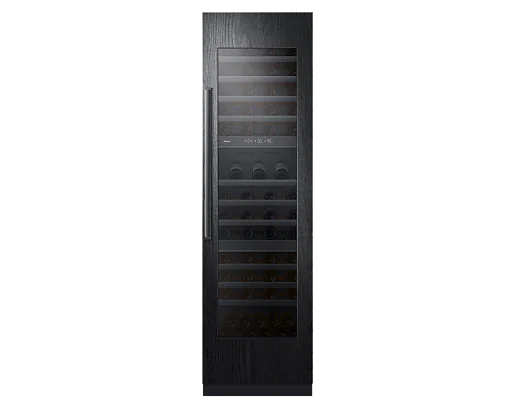

With a sleek design, the wine cellar comes panel-ready for graphite, stainless steel, or custom panels, with the option for a handle-free, push-to-open door.
INFORMATION
BRAND
Dacor
PRODUCT TYPE
Wine Cooler
FOUR SENSORS
The column has four humidity sensors (one each per zone and one outside) to perfectly control the humidity level between 50%-80%, while Dacor’s own Precise Cooling Technology keeps temperature fluctuations within ±.3°F. Receive notifications and real-time status of your collection through the IQ Connect WIFI system and SmartThings app.
ANNUAL ENERGY CONSUMPTION
285 kWh
INTERIOR CAPACITY
100 Bottles
REQUIREMENTS
Electrical : 115V, 60Hz, 15A
PRODUCTION
Made in US
HANDLE TYPE
Contemporary
INTERIOR CONFIGURATION
- Presenter Shelf : Yes
- Gliderack Shelves : 11
- Magnum Bottle Storage : Yes
- Shelf Material : Oak wood, metal trim
MODEL NO.
- Panel Ready : DRW24980LAP/DA
- Silver Stainless & Graphite Stainless : DRW24980LAP/DA RAW24AMLHSR/DA (Panel Kit)
AWARD
Awards for Design Excellence - the largest and most prestigious awards program for product & project design in the Architect & Design Industry.
LED LIGHTING
3D Lighting
INTERIOR MATERIAL
SteelCool™
HUMIDITY SENSORS
- 1 exterior
- 3 interior (1 per zone)
PUSH-TO-OPEN
Yes
DEODORIZING FILTER
Yes
ANTI-VIBRATION COMPRESSOR MOUNT
Yes
WI-FI SMARTTHINGS
Yes
SABBATH MODE
Yes

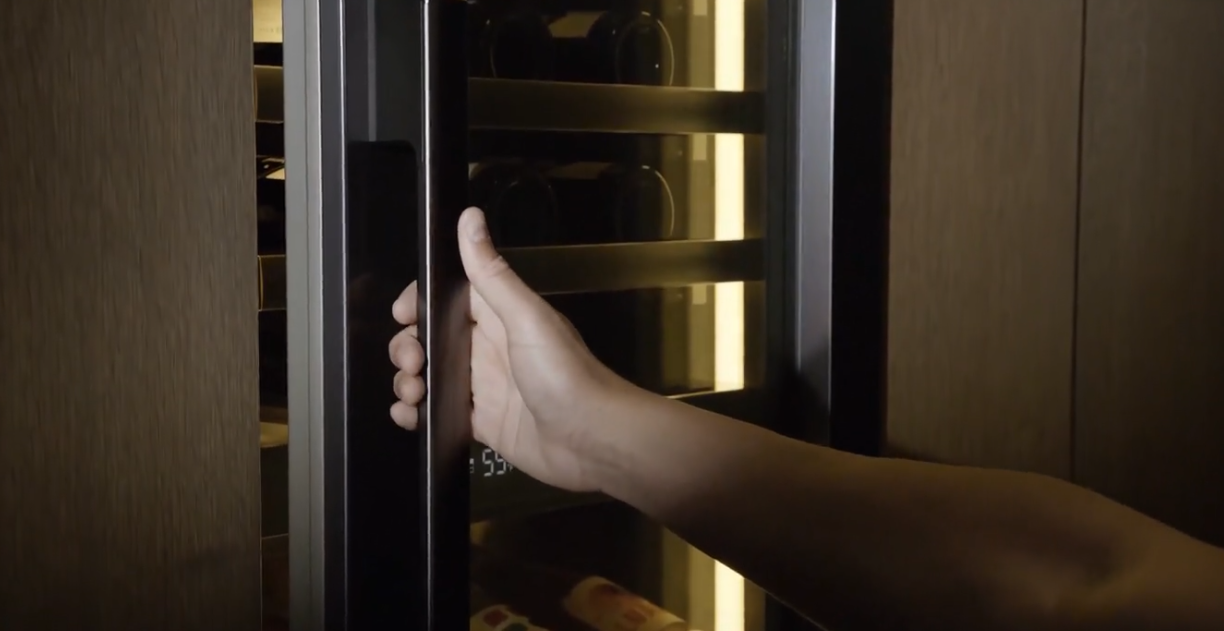

PUSH TO OPEN DOOR
Gently opens with a simple push while also allowing handle free design.
GLASS DOOR
Triple-pane, Argon-filled (UV/IR-resistant)
DOOR SWING
- Hinge on Left
- Hinge on Right
TEMPERATURE RANGE
40°F to 65°F
TRIPLE COOLING
Yes, with 3 evaporators
PRESENTATION SHELF
Yes
WARRANTY
Full coverage : 2 years
TEMPERATURE RANGES
- Temperature fluctuation : ±0.3°F
- Operating temperature : 40°F to 65°F
CONFIGURATIONS
- DRW24980LAP/DA : 24" Wine Column (Left Hinged)
- DRW24980RAP/DA : 24" Wine Column (Right Hinged)
SHIPPING WEIGHT
477.5 lbs
NET WEIGHT
416 lbs
DOOR ALARM
Yes
ENVIRONMENT
Indoor
ACCESSORIES
- RAC00WFAAAA/DA - Water Filter
- RAC00CPAAAA/DA - Column Pairing Kit
- RAC00TCAAAA/DA - Triple Column Pairing Kit
- RAC00DFAAAA/DA - Deodorizing Air Filter (Set of 6)
- RAW24AMLHSR/DA - 24" Column Panel Kit, Contemporary, Silver, Left
- RAW24AMRHSR/DA - 24" Column Panel Kit, Contemporary, Silver, Right
- RAW24AMLHMS/DA - 24" Column Panel Kit, Contemporary, Graphite, Left
- RAW24AMRHMS/DA - 24" Column Panel Kit, Contemporary, Graphite, Right
FINISHES
ZONES
3
DESIGN
Sleek
PROTECTION
From UV & IR rays
BENEFITS
- Panel ready
- LED 3D Lighting
- 3 clean air filters
- R600a refrigerant
- Push-to-Open Door
- 3 independent temperature zones
- Anti-vibration mounted compressor
- SteelCool™ full stainless steel interior
- 3 internal and 1 external humidity sensors
- Argon-filled triplex glass with UV/IR coating

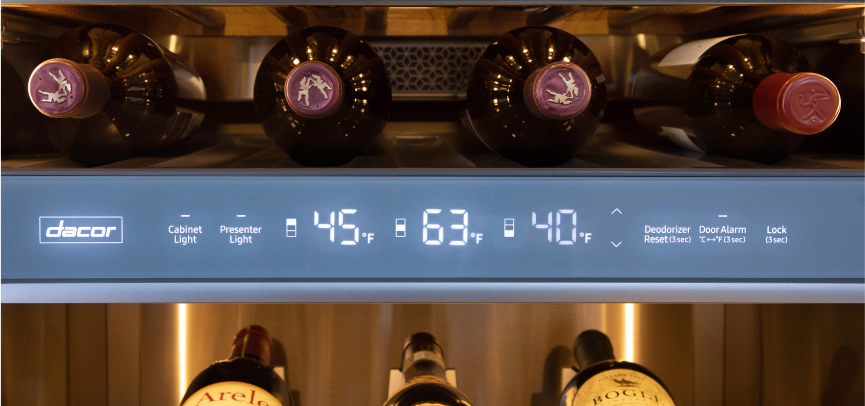

- Glass-Touch Control panel with SmartThings Wi-Fi connectivity

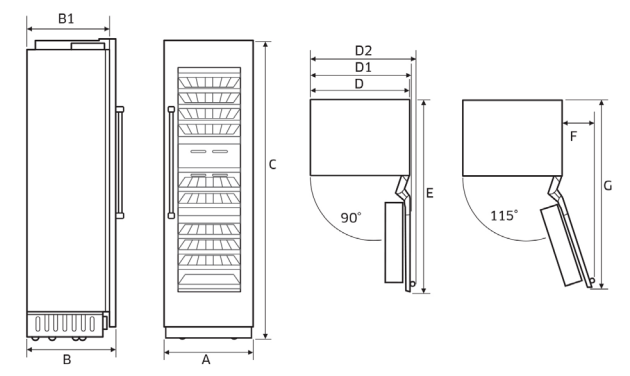

DIMENSIONS

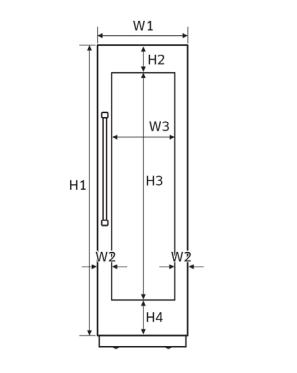

CALLOUT (24")
- W1 : 23 3/4 in (60.3 cm)
- W2 : ( 3 9/32 in (8.3 cm)
- W3 : (17 5/32 in (43.6 cm)
- H1 : 79 7/8in (202.9 cm)
- H2 : 7 23/32 in (19.6 cm)
- H3 : 62 25/32 in (159.4 cm)
- H4 : 9 3/8 in (23.8 cm)
- Panel Thickness : 3/4 in (1.9 cm)
- Max Weight : 55 lb (25 kg)

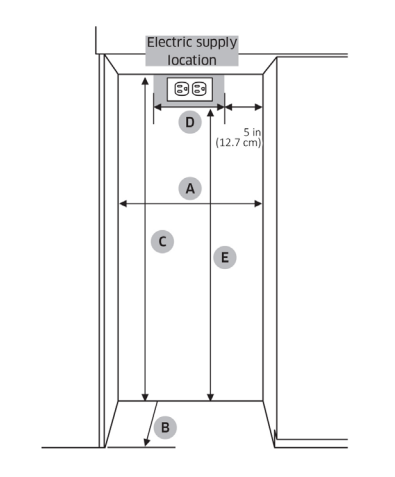

CALLOUT (24")
- A: Cabinet Width : 24 in (61 cm)
- B: Cabinet Depth : 25 in (63.5 cm)
- C: Cabinet Height : 84 in (213.4 cm)
- D: Electrical supply width location : 14 in (35.6 cm)
- E: Electrical supply height location : 80 in (203.2 cm)
- B : Includes the standard door panel thickness with 3/4".
- Installation inside a cabinet of this width allows the wine cellar trim to be attached directly to the surrounding cabinets.

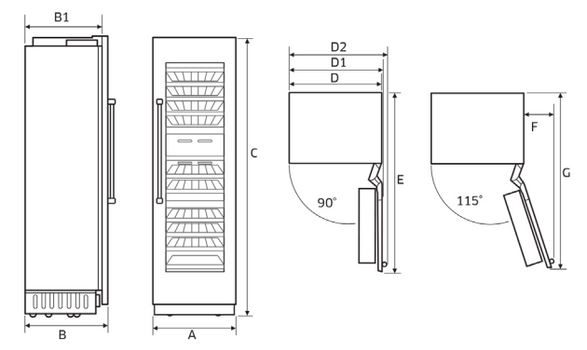

DIMENSIONS
- Depth : 25"
- Width : 23-3/4"
- Height : 83-3/8"
CABINET HEIGHT
-1. 83 1⁄2 in (212 cm) (79 1/32 in (201.7 cm))
-2. 83 in (212.7 cm) (79% in (202.3 cm))
-3. 84 in (213.4 cm) (79% in (203 cm))
-4. 84% in (214 cm) (80% in (203.5 cm))
FEATURES

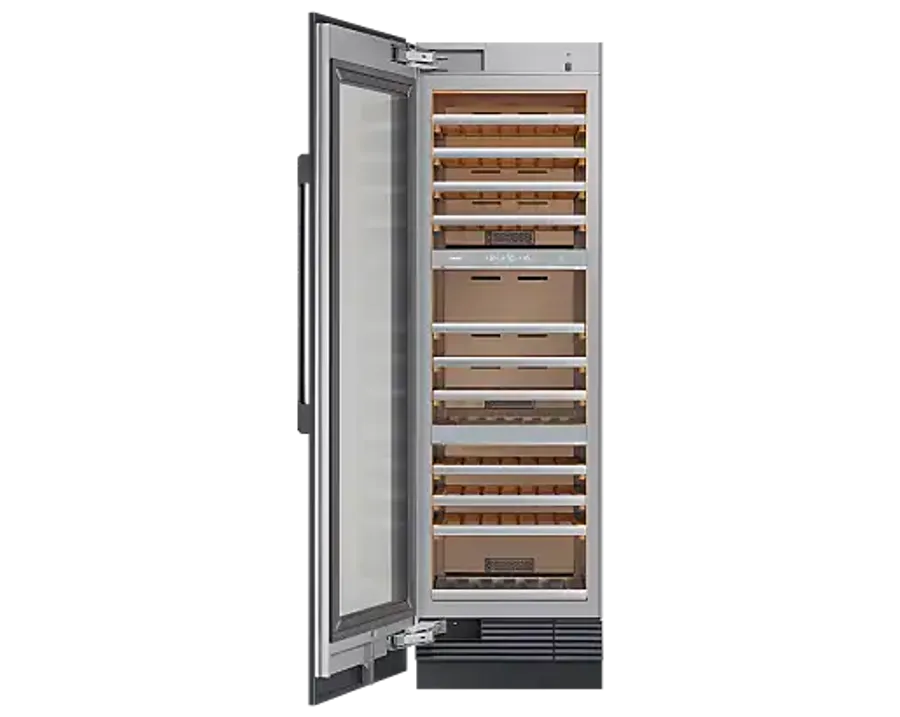

STEELCOOL INTERIOR WITH 3D LIGHTING
Seamlessly integrated LED lighting in a fully wrapped, all-stainless steel interior. Wine optimized LED is used to avoid UV radiation from contaminating the wine collection.

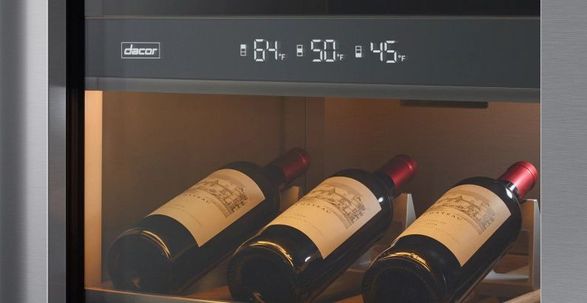

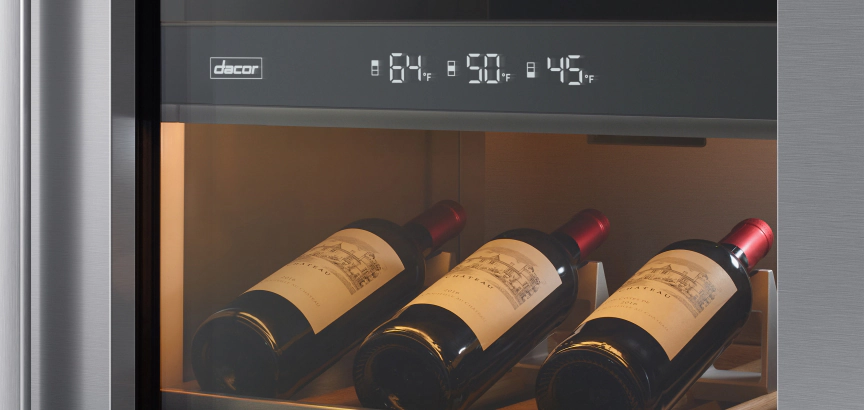

TRIPLE TEMPERATURE ZONES
Store any type of wine with three separate temperature controlled compartments with dedicated evaporator for each zone

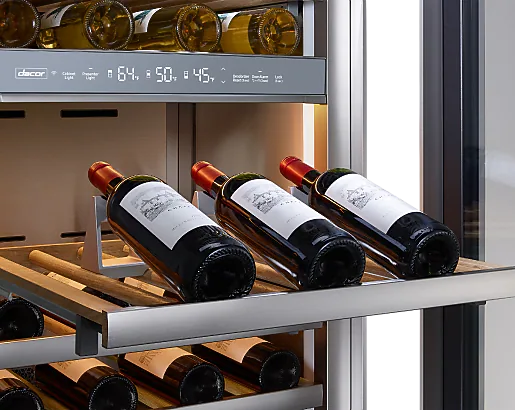

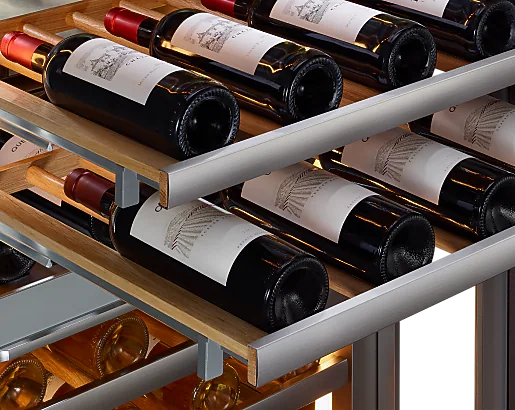

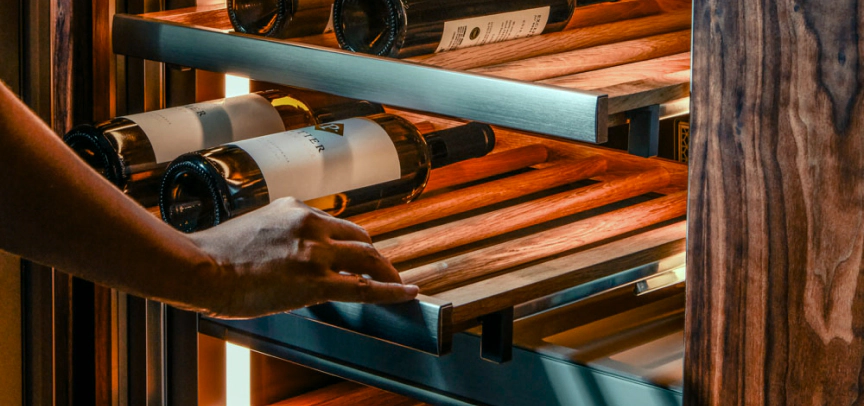

GLIDERACKS
Prevent vibration through luxurious oak wood constructed Glideracks that lock in and slide out with ease using its smooth ball-bearing rails.Wooden dowels help keep moisture away from labels versus wire racks that can potentially cause label damage.
PRECISE COOLING TECHNOLOGY
Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor while minimizing harmful vibration with 6 variable speeds, including ultra-low speed

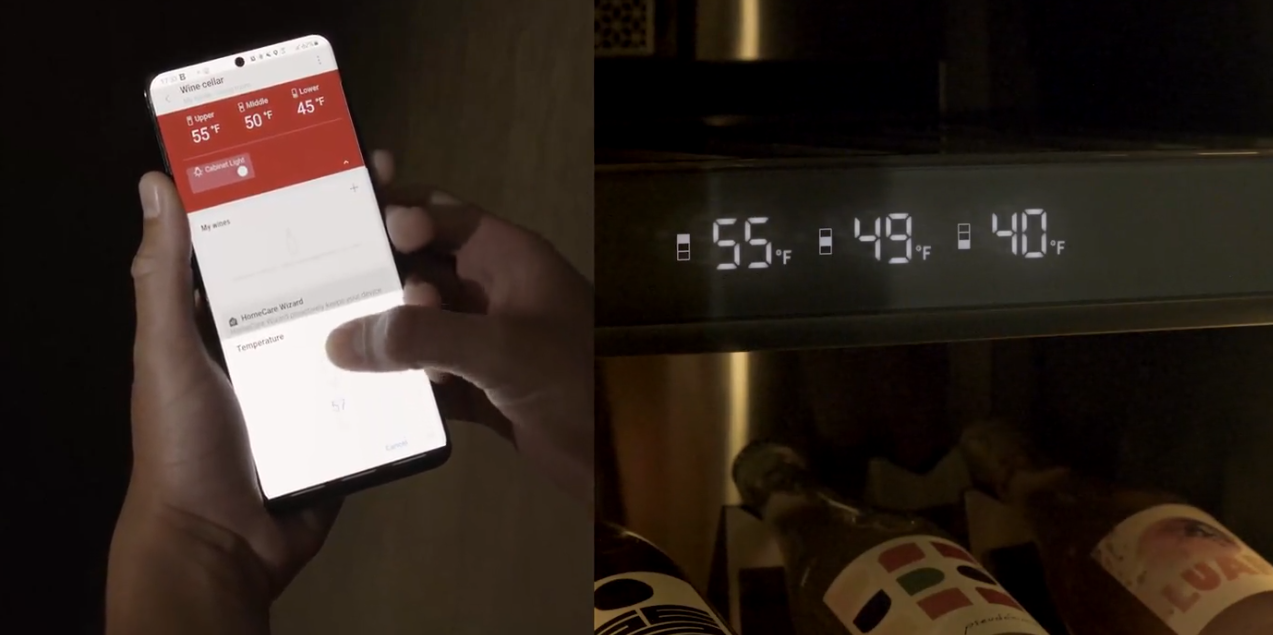

SMARTTHINGS INTEGRATION
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Monitor and control wine cellar all from the comfort of your smartphone.

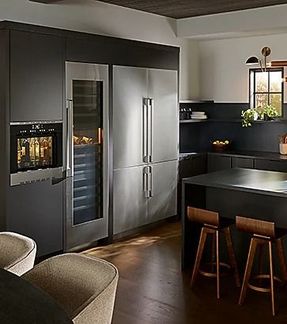

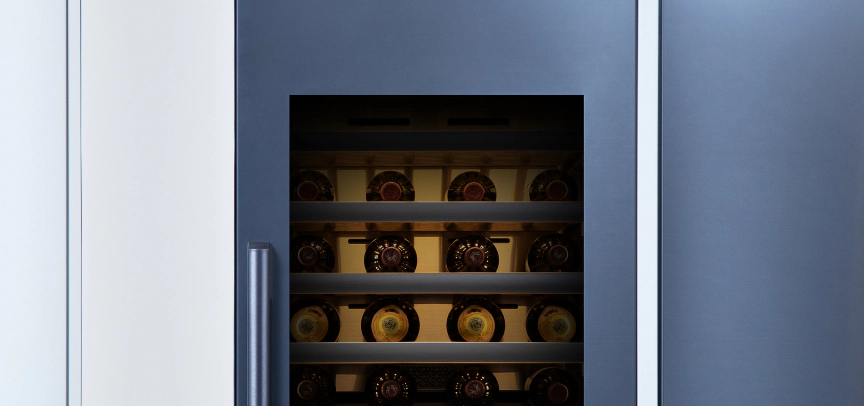

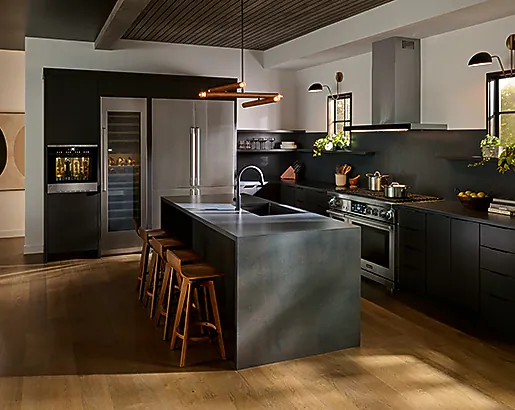

FULLY INTEGRATED FLUSH INSTALL
Dacor Columns can be installed flush in a 25inch cabinet depth, for a fully integrated look.
